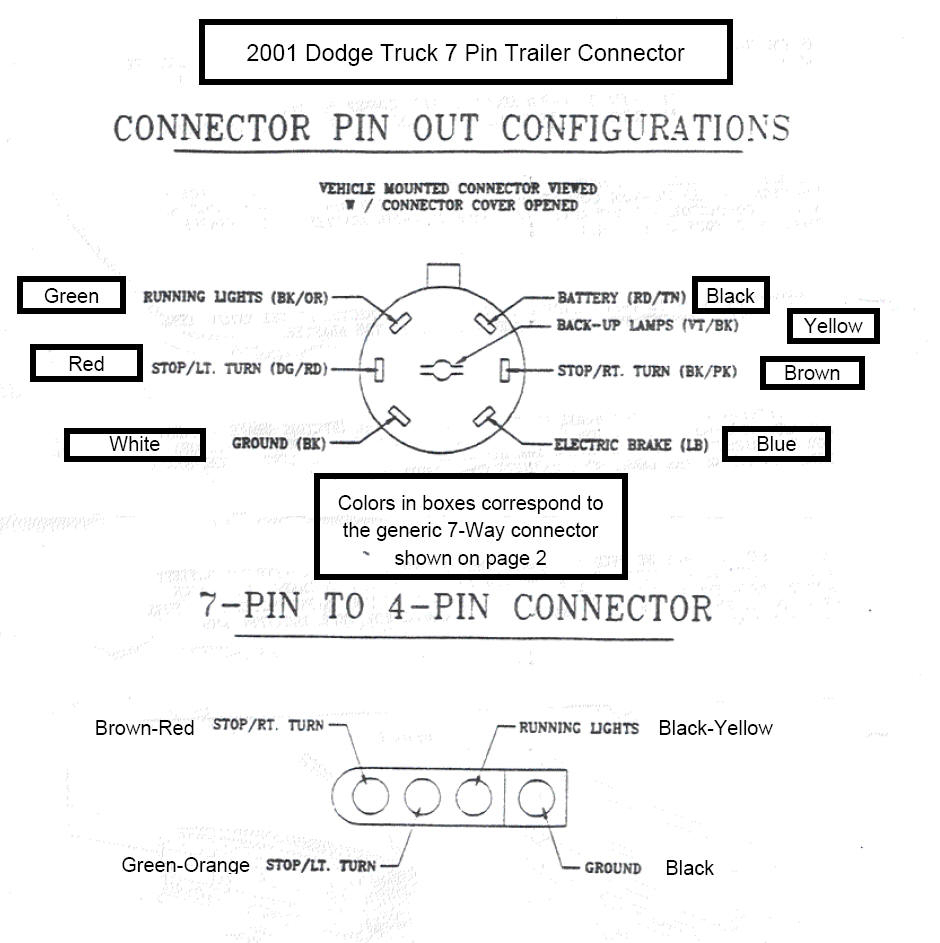

2015 Dodge Trailer Wiring Diagram 7 Pin – It’s important to be aware of wiring harness for the Dodge trailers. The wiring funnel has four wire connections along with a level connector that connects to the opposite side. Adding an image might be a quick and easy method to obtain a cabling diagram of your respective Dodge. Go through the paperclip symbol at the very top correct from the display screen to accomplish this.
Problems with trailer cabling
You could have popular cabling things that are leading to your Avoid trailers to never tow. Excess is a kind of issue. This is when the circuit is subjected to far more current than it could handle. Getting too hot or melting migh result. This challenge can be easily diagnosed by checking the trailer harness’ amperage rating and trailer lighting power pull. If your trailer’s 4-way connector is functioning correctly using a circuit tester, you can also check.
Grounding is another very common condition in trailers electrical wiring. If your trailer has a safety belt or tongue, Grounding can also occur. Grounding troubles could be resolved by tightening up the soil cable inside your trailer’s aluminum body.
Colors

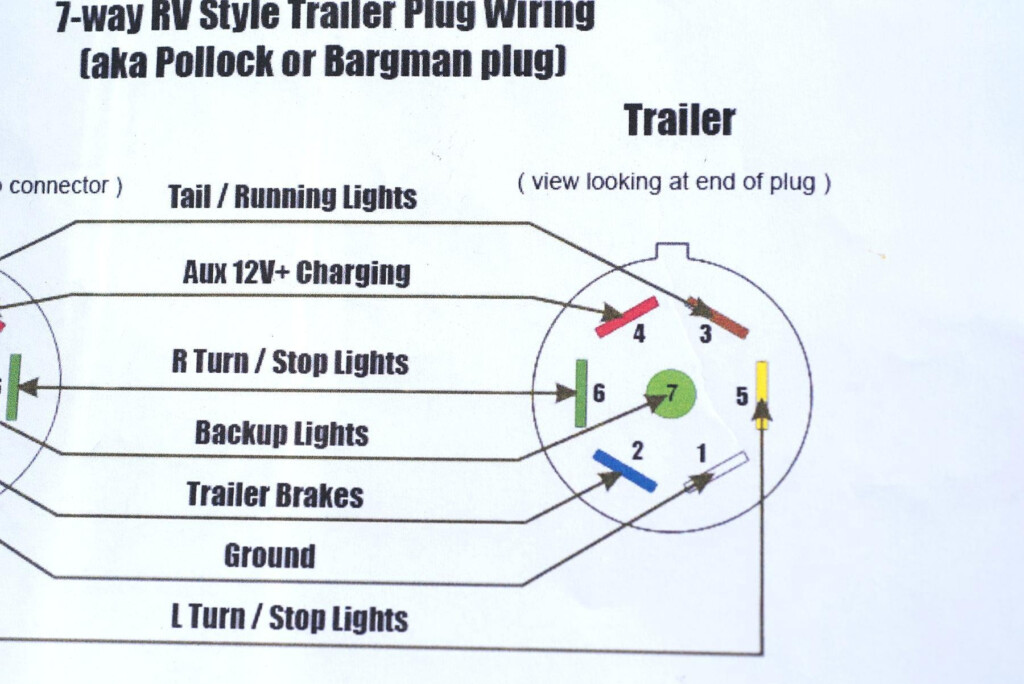

You’ll need so as to recognize which cables are where by if you focus on your trailer. Trailer wires can be carried out in a range of colors, which might vary from one particular automobile to the next. The ground wire needs to be grounded on your trailer tongue. It is actually generally white. In a 5-pin trailers wiring diagram, you will see a glowing blue wire that joins to your back end lights.
Learning the concept of those hues is step one. The cabling around the trailers connector connect is organized in 2 unique regions: the attach terminal part and the inner of your connect, exactly where wires attach. A general shade graph is sufficient for most vehicles. However, it might not work well for vehicles that have factory-installed trailer wiring. Many companies now go with cable hues towards the popular 7-way Motorhome connector.
OE electrical wiring
There are many OE wires options for Avoid trailers. The Curt 55384 trailer cable system supplies a 4-cable level connection to your Avoid trailers. Additionally, it features a wire to perform the reverse lighting. The colours of the cables may vary for the way the trailer wires is placed.
This package incorporates a taillight convertor that plugs into the Dodge’s cabling control. This package includes a standard trailers connector electrical wiring connector that removes the need for customization on the vehicle’s wiring. You may also substitute your vehicle’s trailer wires using a CURT plug-in outlet or connect. These products are super easy to set up and may be spliced into pre-existing tow wires.
Grounding
Make sure that the wiring between your trailer’s lights is properly grounded if it has separate lights. Quick circuits could be the result of a damaged floor. You must also check out the connections for cracked wire connections or uncovered copper. Over-utilization of lighting might cause overload to the trailer’s electrical wiring. For most cars, standard trailer lights will work fine, but suvs, trucks and larger vehicles can handle more.
Floor wire is normally white and should be connected securely for the structure of the trailer. It needs to be strong enough to assist the trailer’s excess weight. If it isn’t large enough, an electrical clip can be used to attach the ground wire to a car’s frame. You can also soil the trailer’s structure by having a bolt through it. It is better to possess two soil cables than a single.
Taillight converter
A taillight connector is a connector that plugs in the vehicle’s present electrical wiring and joins to a common trailers connector. If your vehicle doesn’t have the appropriate wiring harness, a CURT splice in plug or socket can be used. It appears in numerous measurements and will be mounted very easily into the current cabling.
This converter delivers many benefits such as overload and clever circuit protection. These characteristics shield your trailers as well as the car you are towing. Safeguard the converter from debris and abrasion having a defensive deal with.
